Kit Telemetría 3dr Radio 500mw 915mhz- Mwc Apm Transmisor Rf

Disponible Para entrega Inmediata.

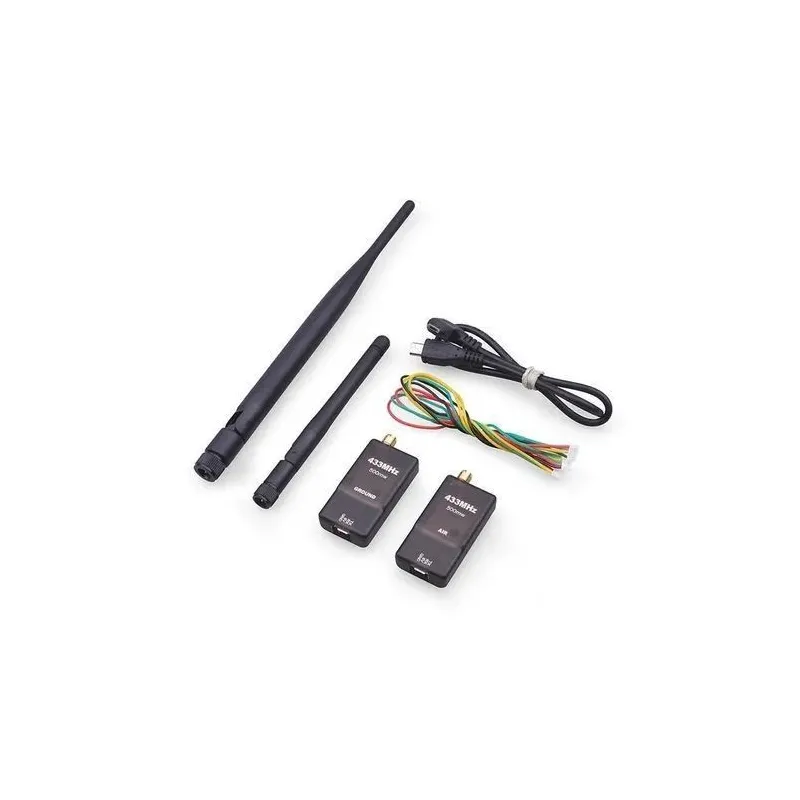

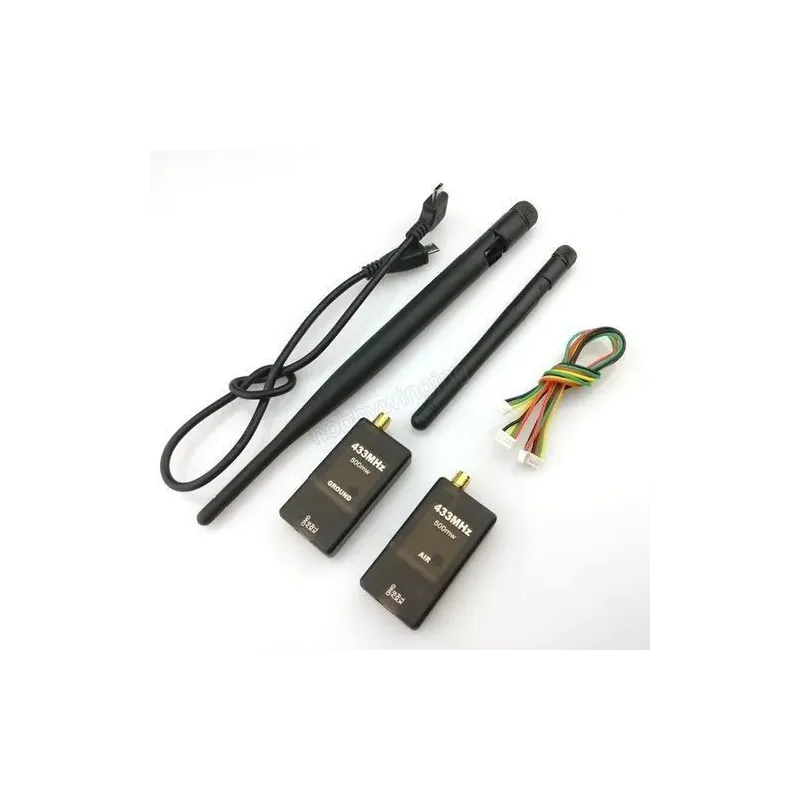

El precio Incluye:

1 x Tx Con Antena

1 x Rx Con Antena

1 x Cable Para APM

1 x Cable Para Pixhawk

Kit Para transmisión RF. Puede ser usado facilmente con Arduino mediante comando por el puerto serial. Permite alcanzar grandes distancias (De Kilometros)

Frecuencia: 915MHZ

Peso: Hasta 4 gramos Sin Antena

- Receiver sensitivity to -118 dBm

- Transmit power up to 20dBm (500mW)

- Air data rates up to 250kbps

- MAVLink protocol framing and status reporting

- Frequency hopping spread spectrum (FHSS)

- Adaptive time division multiplexing (TDM)

- Support for LBT and AFA

- Configurable duty cycle

- Built in error correcting code (can correct up to 25% data bit errors)

- Demonstrated range of several kilometers with a small omni antenna

- Can be used with a bi-directional amplifier for even more range

- Open source firmware

- AT commands for radio configuration

- RT commands for remote radio configuration

- Adaptive flow control when used with APM

- Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module
